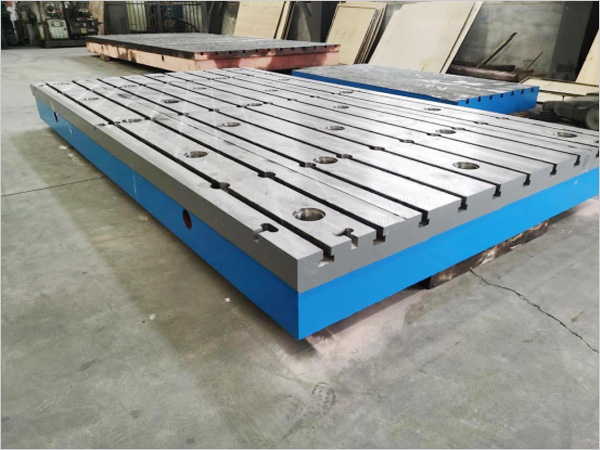

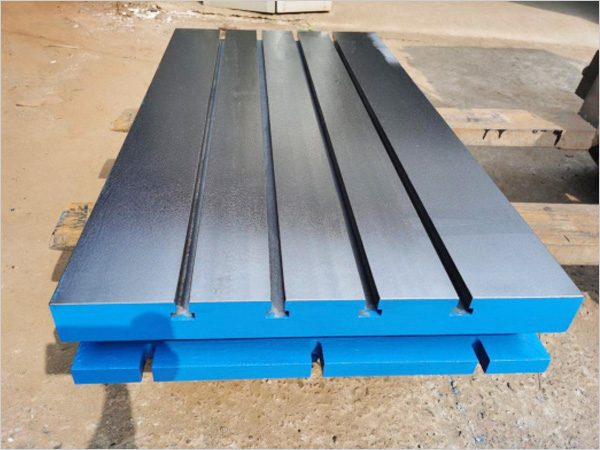

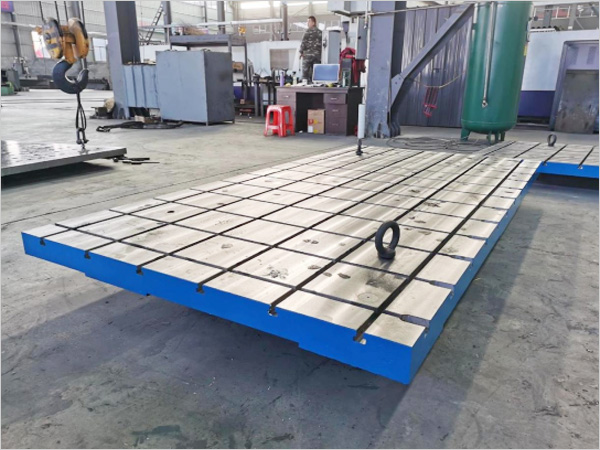

Cast Iron T-shaped Groove Bottom PlateMade Of High-quality Fine-grained High-strength Gray Cast Iron (CI), It Can Be Heat-treated To Relieve Internal Stress. In Addition, The Core And Rib Structure Help To Improve The Structural Stiffness To Withstand Heavy Loads. The Cast Iron T-shaped Groove Bottom Plate Provides A Precise Reference Or Benchmark Plane For Positioning, Tool Marking, Workpiece Inspection, Checking The Accuracy Of Other Surfaces, And Various Types Of Measurement And Marking (layout) Operations. In Addition, It Can Also Be Used For Precision Welding Installation Operations Or For Performing Mechanical Processing Operations Such As Drilling And Boring. It Can Also Be Used As A Test Bench For Installing Engines, Large Machines, Transmissions, Or Other Industrial Equipment.
Material: HT200-300 Or Customized, Made Of High-quality Cast Iron. A Sturdy Ribbed Structure The Thick And Sturdy Top Surface Is Precisely Completed Through Planing And Manual Scraping
Specification: 200x200 To 4000x8000mm Or Customized

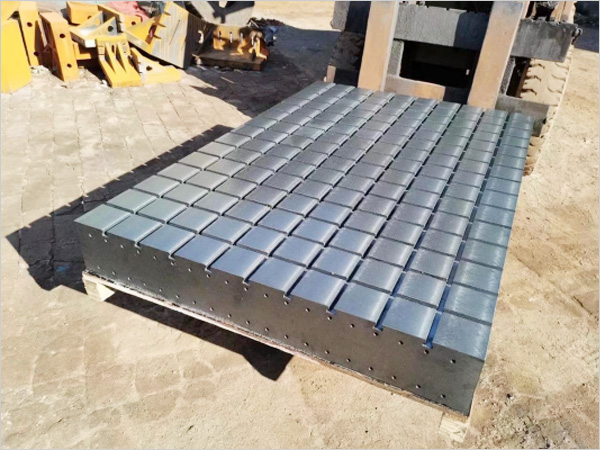

Work Surface: Flat, Positioning Grid Groove, Threaded Hole, T-shaped Groove, Etc.
Hardness: HB160-240
Structure: Rib Like (bone Like) Structure With Sufficient Wall Thickness
Surface Coating: Apply Anti Rust Oil To The Working Surface And Anti Rust Paint To The Unprocessed Area
Heat Treatment: Can Eliminate Stress, Improve Stability And Wear Resistance
Accessories: Equipped With Suitable Devices For Leveling And Anchoring On The Floor.
Bracket With Leveling Screws: Corresponding Size Provided, Additional Fee Required If Needed. The Total Height From The Floor To The Top Of The Surface Panel Is Approximately 750 To 800 Millimeters..
Accuracy Level: Level 1.2.3
Packaging: Rust Proof Packaging+plywood Box
Warranty: 1 Year
