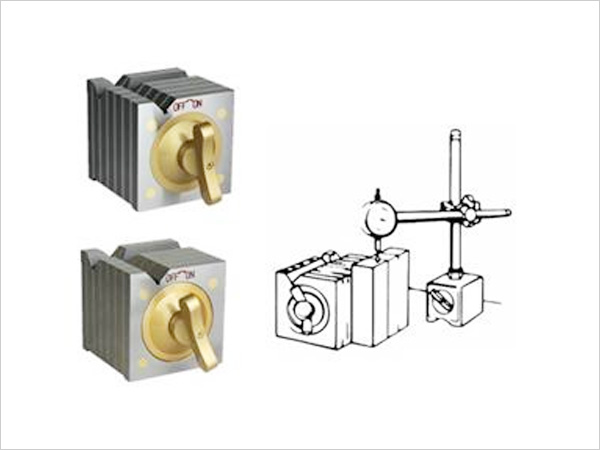

Magnetic Square Box, Also Known As Magnetic Square Box, Square Magnetic Measuring Table, Square Magnetic Table, Magnetic Base, Square Magnetic Box, Etc.
Magnetic Square Box Is A Cubic Magnetic Device Used For The Marking Function Of Fixing Fixtures On Platforms For Sheet Metal And Cylindrical Workpieces With Right Angle Accuracy.
The Usage Method And Material Of The Magnetic Square Box Are Similar To Those Of The Cast Iron Square Box. The Difference Is That The V-groove And Bottom Of The Magnetic Square Box Are Both Equipped With Magnetic Force, Which Allows The Tested Workpiece To Be Firmly Fixed On The Square Box And Is Easy To Use; At The Same Time, It Greatly Reduces The Risk Of Workpiece Slipping And Injuring Workers Due To Instability Or Negligence During Operation.
Features Of Magnetic Square Box: High Precision, Not Easily Deformed, Strong Wear Resistance, Uniform Distribution Of Magnetic Force, Handle Control Of Magnetic Strength, And Other Advantages.
Magnetic Box Accuracy: Positive And Negative 2 Wires, Vertical And Parallel Accuracy Less Than 2 Wires.
Magnetic Box Material: Steel And Copper.
Magnetic Square Box Specification: 100x100x100mm 150x150x150mm
