Adjustable Bridge Deck

Flatness Detection Adjustable Bridge Deck,Adjustable Bridge DeckTesting Scope: Flatness And Parallelism Of Small Machine Tools Such As Tablets, Platforms, Rulers, Workbenches, Precision Workpieces, Lathes, Grinders, Etc.

The Use Of Adjustable Bridge Deck For Flatness Detection: 1. Technical Requirements: The Flatness Of The Working Face Should Not Exceed 0.01mm, And The Non Parallelism Of The Span Should Not Exceed 0.03mm. 2. The Technical Requirement Data Is The Parallelism Between The Double Axis And The Upper Plane Of The Bridge Deck Itself After Distance Adjustment. However, When The Span Is Adjusted And The Instrument Is Placed On The Bridge Deck During Testing, The Instrument And The Bridge Deck Have Become A Whole. At This Point, The Self Error Of The Bridge Deck Has Been Eliminated, And The Accuracy Of The Instrument Is The Accuracy Of The Bridge Deck.

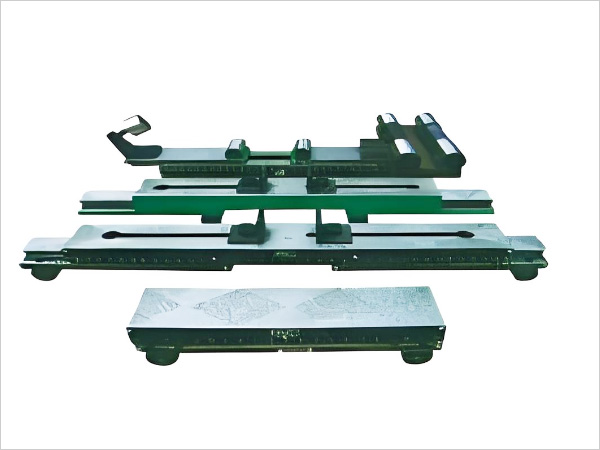

Flatness Detection Adjustable Bridge Deck Specification Model: Type A; B-type-1; B-type-2; Type C; D-type. Adjustable Range: 50-600mm.
