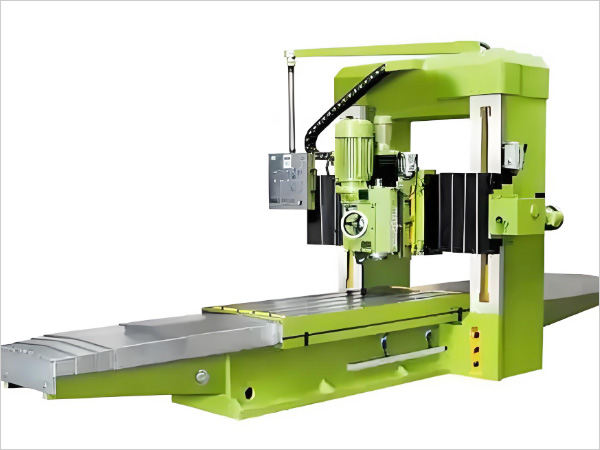

TX20 SeriesLongmen Boring And Milling Machine ToolThe Host Structure Consists Of A Worktable That Moves And A Crossbeam That Moves Up And Down Along The Left And Right Columns. The Overall Structure Is Compact And The Performance Is Stable. Equipped With An Electrical Control System, It Makes Operation Simple And Achieves Complex Functions. Equipped With Various Quick Change Accessory Milling Heads (right Angle Milling Head, Corner Milling Head, Extended Spindle Head, Countersunk Milling Head, Etc.), It Can Complete Boring, Milling, Drilling, Reaming, Tapping And Other Processes On The Inner And Outer Five Sides In One Clamping. Widely Used In The Machining Department For Milling Flat, Inclined, And Groove Surfaces Of Medium-sized And Heavy-duty Black And Non-ferrous Metals, As Well As Boring And Expanding Holes.
This Series Of Machine Tools Can Be Equipped With Multiple Milling Heads Of Different Specifications, Each Of Which Can Perform High-speed And High-power Cutting Simultaneously, Greatly Improving Work Efficiency.
Main Structural Performance And Characteristics
The Main Components Of The Machine Tool Include The Bed, Worktable, Crossbeam, Left And Right Columns, Connecting Beam, And Gantry Top, All Of Which Are Resin Sand Shaped And Cast With High Alloy Wear-resistant Cast Iron. They Undergo Heat Aging Treatment, Vibration Aging Treatment, Rough Machining, Vibration Aging Treatment, And Precision Machining To Eliminate Negative Stress On The Machine Parts And Maintain Stable Performance.
The Bed And Worktable Guide Rails Adopt Static Pressure Unloading And Wear-resistant Coating Technology To Ensure Low-speed Stability And Accuracy Retention.
The Three-way Feed And Milling Head Feed Of The Machine Tool Are Driven Separately, Allowing Each Component To Operate Independently And Improving Work Efficiency.
★ The Spindle Of The Slide Type Boring And Milling Head Is Automatically Variable Speed, And The Feed Is Driven By A Ball Screw Pair, And A Hydraulic Balance Cylinder Device Is Used To Balance The Weight Of The Slide.
According To User Requirements, Various Forms Of Accessory Milling Heads Can Be Provided To Further Expand The Scope Of Use.
The Electromechanical Control System Adopts PLC And Digital AC Servo Control Technology To Achieve High-precision And High Reliability Control.
The Machine Tool Adopts Horizontal AC Variable Frequency Vector Control For Three-way Feed, Achieving Stepless Speed Regulation.
The Workbench Is Set As A Touch Screen Setting, And The Workbench Operation Is A Suspended Button Station.
The Vertical X Coordinates Of The Machine Tool Worktable, The Vertical Z Coordinates Of The Boring And Milling Head Y, And The Slider Can Be Configured With Digital Display Devices For Easy Operation And Measurement.
