We Offer The Highest Capacity Shock Absorber Bracket. Rubber Or Felt Pads Can Reduce Vibration, Protect Components, And Extend The Service Life Of The Machine. Place Large Equipment Such As CNC And Injection Molding Machines On These Supports, And The Weight Will Fix Them In Place. Use A Wrench To Turn The Hexagonal Head Bolt To Adjust The Height And Angle.
Iron Based - These Brackets Are Best Suited For Dry Environments As Moisture Can Cause Them To Rust.

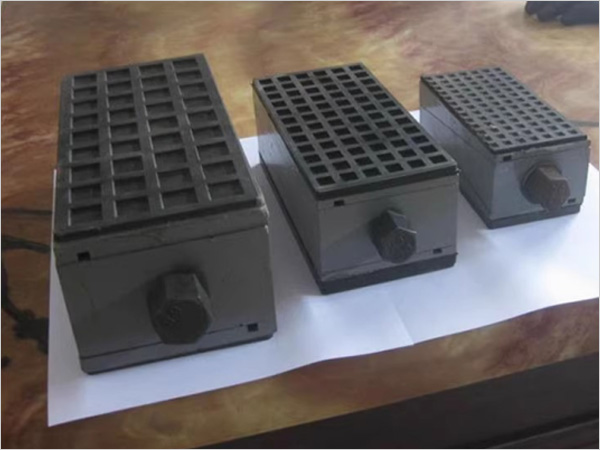

Rubber Pad - In Addition To Reducing Vibration, Rubber Pads Can Also Grip Surfaces To Prevent Vibrating Equipment From Sliding. It Can Also Reduce Noise And Protect The Floor From Scratches And Abrasions.
Easy Installation And Adjustment, Flexible Migration, No Need To Drill Holes Or Bury Anchor Screws, And No Damage To The Ground, Is A Major Reform In The Installation Process Of Machine Tools And Equipment.
The Material Is Cast Iron HT-200

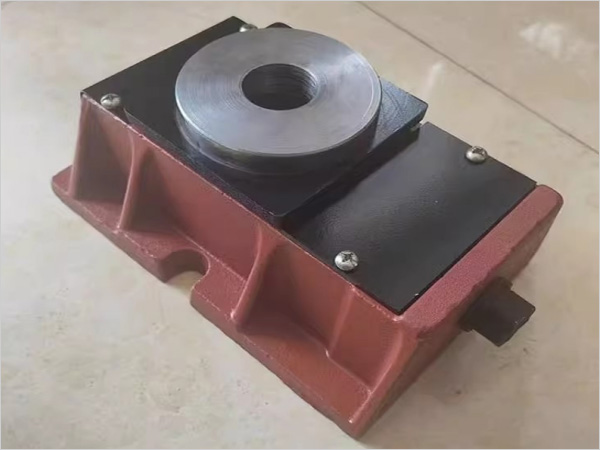

Specification Of Wedge Leveling Pad
SpecificationsMm | BoltMm | WeightKg | LoadKg |
160×80×66 | M16 | Four Point Five | One Thousand And Five Hundred |
180×100×68 | M16 | Two Thousand | |
200×100×70 | M18 | Six Point Two | Three Thousand |
220×100×70 | M18 | Nine Point Four | Four Thousand |
240×120×90 | M20 | Five Thousand | |
260×130×93 | M20 | Six Thousand | |
285×160×115 | M24 | Twenty-three | Eight Thousand |
300×170×125 | M24 | Twenty-nine | Nine Thousand |

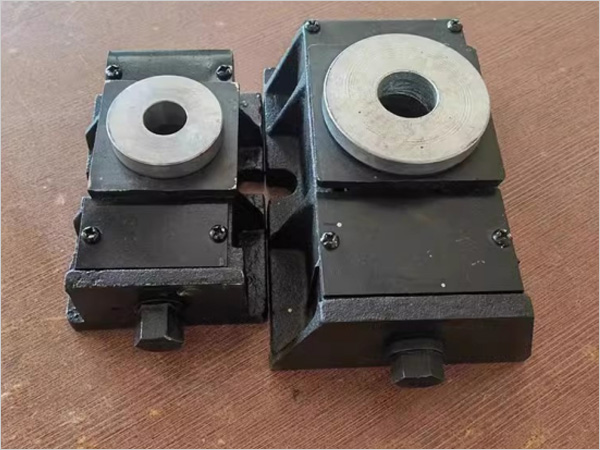

S82Series PrecisionMachine Wedge Leveling Pad | |||
SpecificationsMm | BoltMm | WeightKg | LoadKg |
180×120×80 | M16 | One Thousand And Five Hundred | |
200×130×85 | M16 | Nine Point Five | Two Thousand |
240×150×100 | M18 | Fifteen Point Five | Three Thousand |
260×160×110 | M18 | Four Thousand | |
300×170×120 | M24 | Twenty-six | Six Thousand |

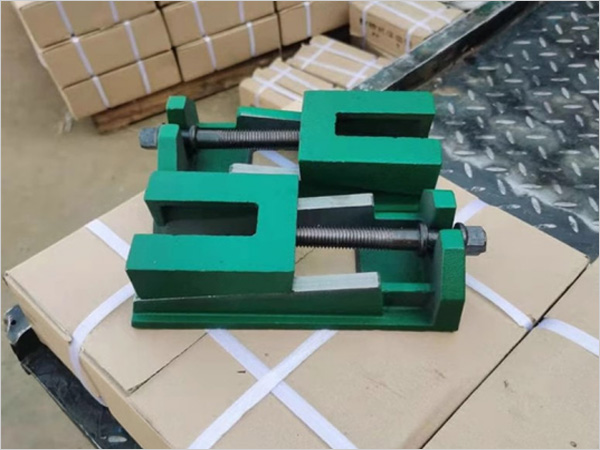

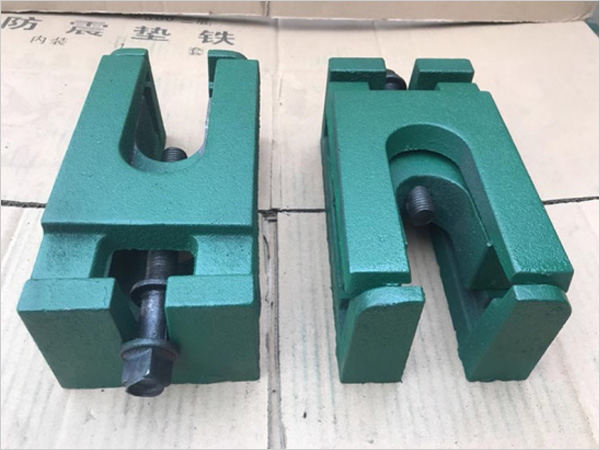

S85Series Three-layer Adjustment Pad Iron | |||
SpecificationsMm | BoltMm | WeightKg | LoadKg |
160×80×70 | M14 | Three Point Seven | Six Hundred |
200×100×80 | M16 | Six Point Five | One Thousand And Two Hundred |
200×150×85 | M24 | Nine Point Five | Two Thousand And Five Hundred |
210×160×100 | M18 | Ten Point Five | Two Thousand And Three Hundred |
240×120×90 | M18 | Eleven | Two Thousand And Three Hundred |
240×120×100 | M18 | Twelve | Two Thousand And Five Hundred |
240×150×100 | M18 | Thirteen | Three Thousand |
240×160×80 | M24 | Fourteen | Three Thousand And Two Hundred |
300×160×100 | M24 | Twenty-one | Three Thousand And Five Hundred |
300×190×100 | M24 | Twenty-five | Three Thousand And Eight Hundred |
310×250×110 | M24 | Thirty-eight | Four Thousand |
350×180×110 | M24 | Thirty-one | Four Thousand And Five Hundred |
