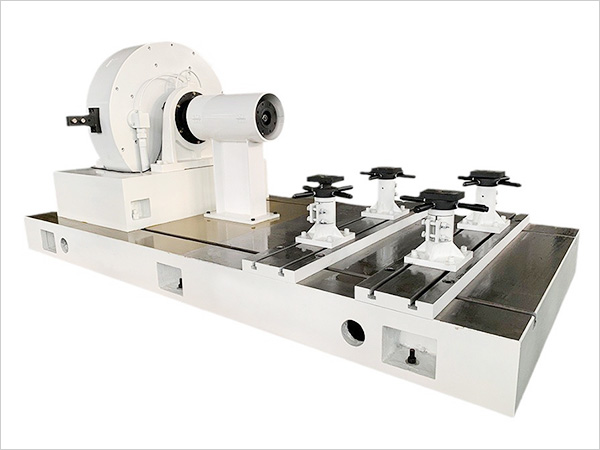

T-slot Test Bench

T-slot Test Bench/T-shaped Slot Clamp: Suitable For Military Technology, Aerospace, Energy Production, And Specialized Machinery Manufacturing. The Working Face Has Grooves, Holes, And Scale Lines, And The Size Of The Test Bench/clamp Is Generally Less Than 4000 × 9000mm Per Piece. If It Is Larger Than This Size, Multiple Pieces Need To Be Spliced Together. The Price Is Calculated Comprehensively Based On The Size Of The Specification, The Accuracy Of The Flatness, The Difficulty Factor Of Processing, And The Overall Weight.

Installation Methods: Bracket, Ground (pad Iron), Pit (anchor), Isolator (vibration Reduction)

Production Standards: GB/T 22095-2008

Accuracy Level: 0-3 Levels

Texture Of Material: HT200-250； QT500-7

The Production Process Is As Follows:

1. Develop Production Plans And Design Drawings;

2. Production Of EPC Foam Type;

3. Sand Pit Design;

4. Pouring;

5. Tempering Of Raw Castings;

6. Rough Machining Of Machine Tools;

7. Conduct Secondary Tempering To Eliminate Internal Stress And Prevent Deformation;

8. Perform Precision Machining On The Machine Tool And Ensure That The Platform Dimensions Are In Place;

9. Platforms With High Flatness Requirements Should Be Manually Scraped And Ground; Dimensions In Millimeters (length X Width)

Made In China, Welcome To The Factory,

Factory Direct Sales Savings: By Purchasing Directly From Our Factory, You Can Save A Significant Amount Of Costs. Our Streamlined Supply Chain Eliminates Intermediaries, Allowing Us To Offer Competitive Prices Without Compromising Quality.

Batch Order Discount: For Large Projects Or Industrial Applications, We Offer Significant Discounts For Bulk Orders. Please Contact Us To Discuss Your Specific Requirements And Obtain A Customized Quotation That Is Suitable For Your Budget And Project Scale
