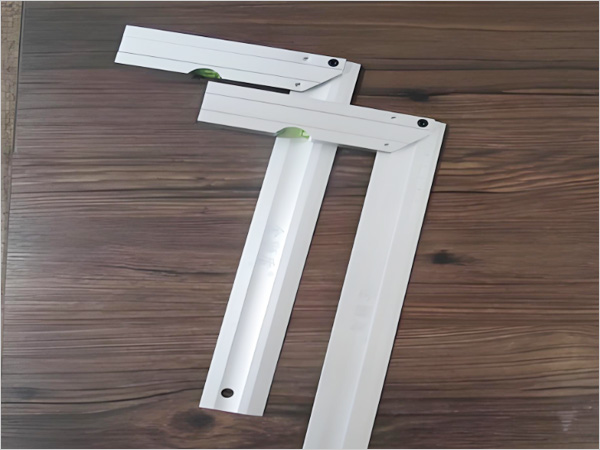

1Magnesium Aluminum Square RulerMaterial Used: Strong Aluminum Alloy Material (aircraft Frame Aluminum)
2、 Magnesium Aluminum Square Ruler Packaging
Generally, Wooden Boxes Are Used For Packaging. Magnesium Aluminum Alloy Is A New Material For Manufacturing Measuring Tools, Recommended By Scientific Research And Metrology Departments For The Production Of Lightweight Rulers, And Has Great Advantages. Suitable For High-precision Machinery And Instrument Inspection, As Well As Inspection Of Non Perpendicularity Between Machine Tools, Installation, Machining Positioning, Marking, Etc. It Is An Important Measuring Tool In The Mechanical Industry, Characterized By High Accuracy, Good Stability, And Easy Maintenance. A Measuring Instrument Mainly Used For Measuring The Perpendicularity Between The Surface And The Base Surface, And For Checking The Errors Of Right Angles, Perpendicularity, And Parallelism, Also Known As A 90 ° Angle Ruler. The Standard For Plane Accuracy Is GB6092-85, The Standard For Verticality Is GB6092-85, And The Tolerance For The Side Is 0.02.
3、 Physical Performance
The Bending Point Of General Steel Materials Is 30kg/mm2, While The Bending Point Of General Cast Iron Parts Is 38kg/mm2, Reaching 110kg/mm2. The Bending Resistance Index Is Far Superior To Other Materials. This Is Because Magnesium Aluminum Alloy Is A New Type Of Alloy Material, And The Content Of Magnesium And Aluminum In Magnesium Aluminum Alloy Is About 50% Each.
Storage Of Magnesium Aluminum Square Ruler: It Can Be Hung Or Placed Flat, And Its Straightness And Parallelism Will Not Be Affected By Long-term Placement. Not Easy To Rust: Do Not Apply Oil During Use. If Not Used For A Long Time, Gently Apply A Thin Layer Of General Industrial Oil When Stored.
4、 Product Description
Magnesium Aluminum Square Ruler Refers To A Measuring Instrument Used To Check Right Angles, Perpendicularity, And Parallelism When The Measuring Surface And Base Surface Are Perpendicular To Each Other. It Is Also Known As A Bending Ruler, Guiding Ruler, Or 90 Degree Angle Ruler. It Has A Simple Structure And Is Easy To Use, Making It One Of The Commonly Used Measuring Instruments For Equipment Installation, Adjustment, Marking, And Platform Measurement.
5、 Purpose:
Magnesium Aluminum Square Ruler Is Mainly Used For Inspecting And Marking The Right Angle Of Workpieces. When Installing And Repairing Equipment, It Is Used To Inspect The Verticality Of The Relevant Surfaces Of Parts Or Components. Also Used For Measuring Tools, Instruments, And Machine Tools. Co Construction Adjustment And Identification Of Workpieces, Such As Verifying The Verticality Of Instrument Guide Rail Movement, Detecting The Verticality Error Of Workpiece Mutual Position, Etc.
6、 Usage Process
(1) Class 00 And Class 0 Square Rulers Are Generally Used To Inspect Precision Measuring Tools; Level 1 Is Used For Inspecting Precision Workpieces; Level 2 Is Used For Inspecting General Workpieces.
(2) Before Use, Each Working Surface And Edge Should Be Inspected For Any Damage Caused By Collision. The Left And Right Sides Of The Long Side And The Upper And Lower Sides Of The Short Side Of The Angle Ruler Are Both Workpiece Surfaces (i.e. Inner And Outer Right Angles). Clean The Straight Edge Working Surface And The Inspected Working Surface
(3) When Using, Place The Ruler Against The Working Surface Of The Workpiece Being Tested And Use The Optical Gap Method To Determine If The Angle Of The Workpiece Is Correct.
(4) To Determine The Measurement Consequence, The Square Ruler Can Be Flipped 180 Degrees And Measured Again. The Arithmetic Mean Of The Two Readings Can Be Taken As The Measurement Consequence, Which Can Eliminate The Deviation Of The Square Ruler Itself.
(Pay Attention To Handling, Leaning, And Placing Gently To Prevent Bending And Deformation.)
7、 Product Advantages
Lightweight, Easy To Use, Not Easily Deformed, And Far Superior In Bending Resistance Compared To Other Materials. Easy To Store, Hang, And Lay Flat, It Will Not Affect Its Straightness And Parallelism Due To Long-term Flat Placement. Magnesium Aluminum Alloy Is A New Material For Manufacturing Measuring Tools That Is Not Easy To Rust And Does Not Require Oiling During Use. It Is Recommended By Scientific Research And Metrology Departments.
8、 Product Parameters
GB6092-85 Standard Manufacturing,
Material: HT200-250.
Accuracy: 0-2 Levels
Physical Properties: 47kg/mm2
Elongation Rate: 17%
Qufu Point: 110kg/mm2
Vickers Strength: HV80
