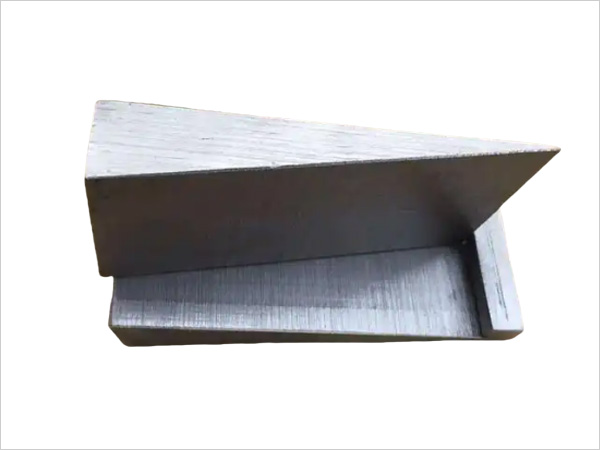

Fox Shaped WedgeIt Is Used To Adjust The Gap Between The Machine Tool Guide Surface And Maintain The Contact Of The Guide Surface.
Production Process: Forging Rough Planing Tempering Semi Precision Planing Aging Precision Planing Flat Grinding Scraping Grinding. In The Past, It Was Straightening After Quenching And Tempering, But Now It Is Straightening While Hot After Quenching Because The Workpiece Has Not Yet Cooled Through, The Transformation Of Martensite Has Not Been Completed, And The Plasticity Is Good. After Straightening, It Is Tempered At High Temperature To Straighten The Stress.
Fox Shaped Wedges Are Usually Used In Pairs. First, A Flat Steel Wedge Is Placed On A Concrete Foundation, And Then Two Steel Wedges Are Crossed And Placed On A Flat Pad Iron. When Adjusting, A Hammer Is Used To Strike The Two Wedges, And The Slope Of The Fox Shaped Wedge Is Used To Raise Or Lower The Equipment To Achieve The Purpose Of Adjusting The Level. After Adjusting The Level, Spot Weld It To The Equipment Base To Make The Fox Wedge Stable And Secure. Finally, Pour Concrete To Keep The Equipment In Good Horizontal Condition During Operation, Reducing Machine Wear And Reducing The Cost Of Replacing Equipment Components.
Fox Shaped Wedges Are Generally Used In Petroleum Machinery; Power Equipment Such As Generator Sets, Water Pumps, Boilers, Etc. In Power Plants; Chemical Equipment; Textile Equipment; Most People Also Choose To Install And Use Fox Shaped Wedges.
The Commonly Used Specifications For Customized Processing Include: (length * Width * Thick End * Thin End) 60 * 30 * 10 * 2, 80 * 40 * 10 * 2, 90 * 45 * 10 * 2, 90 * 45 * 15 * 3, 100 * 50 * 10 * 2, 100 * 50 * 15 * 3, 120 * 60 * 15 * 3, 120 * 60 * 20 * 3, 130 * 80 * 10 * 2, 130 * 80 * 15 * 3, 140 * 70 * 10 * 2, 140 * 70 * 15 * 3, 140 * 70 * 3, 150 * 80 * 15 * 3, 150 * 80 * 20 * 3, 160 * 80 * 15 * 3, 160 * 80 * 20 * 3, 180 * 90 * 15 * 3, 180 * 90 * 20 * 3, 200 * 100 * 15 * 3, 200 * 100 * 20 * 3, 200 * 100 * 25 * 3, 240 * 120 * 20 * 3, 240 * 120 * 25 * 3, 300 * 150 * 20 * 3, 300 * 150 * 20 * 8, 300 * 150 * 25 * 3, 350 * 200 * 20 * 5, 350 * 200 * 30 * 8, 400 * 200 * 25 * 3, 400 * 200 * 30 * 8 And Above Specifications Have A Large Inventory Of Tens Of Thousands Of Chinese Manufacturers In Various Specifications. Welcome To The Factory.
Factory Direct Sales Savings: By Purchasing Directly From Our Factory, You Can Save A Significant Amount Of Costs. Our Streamlined Supply Chain Eliminates Intermediaries, Allowing Us To Offer Competitive Prices Without Compromising Quality.
Batch Order Discount: For Large Projects Or Industrial Applications, We Offer Significant Discounts For Bulk Orders. Please Contact Us To Discuss Your Specific Requirements And Obtain A Customized Quotation That Is Suitable For Your Budget And Project Scale
