Conveyor Hood

The Conveyor Cover Is Installed On The Conveyor Belt Truss To Prevent Rainwater, Wind, Dust, Sun, And Snow. It Reduces Material Loss During Transportation, Making The Conveyor Belt Safer And More Reliable In Operation, And Has A Good Effect On Purifying The Environment.

Conveyor Covers Are Suitable For Various Industries, Including Steel Mills, Paper Mills, Chemical Processing Plants, Fertilizer Plants, Foundries, Coal Mining Facilities, Power Plants, Gravel Plants, And Grain Plants.

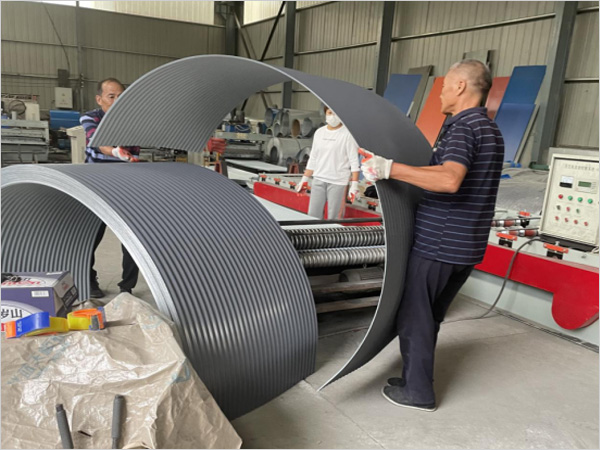

Production Process: First, Open The Pre Painted Steel And Press It Into A Corrugated Shape, Then Arch It And Ship The Finished Product. For The 900 Type Small Ripple, The Effective Width After Deducting Overlap Can Reach 890mm.

Service Life: 12-15 Years

Conveyor Hood Material: Pre Painted Steel; Stainless Steel 304; 316； Aluminum Manganese Alloy.

Pre Painted Steel Conveyor Covers In Red, Green, Blue, White, And Gray Colors Can Also Be Customized According To The Raul Color Chart

Thickness: 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm, 1.2mm. Multiple Options Are Available (usually 1.2mm Is The Most Commonly Used)

The Ripple Size Is 31.8mm In Width And 9mm In Height, Forming A Semi-circular Shape With A Continuous Radius And Two Vertically Straight Sections. The Surface Is Wavy,

The Production Period Is Generally One Working Day

Payment Method: 30% Advance Payment, With Photos Or Videos Taken By The Buyer Before Shipment The Purchaser Shall Pay The Final Payment

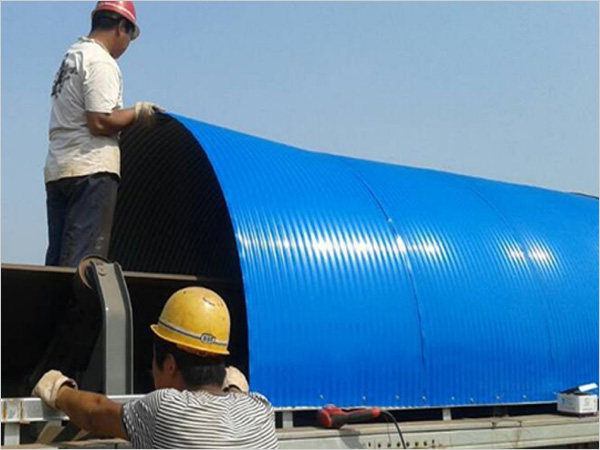

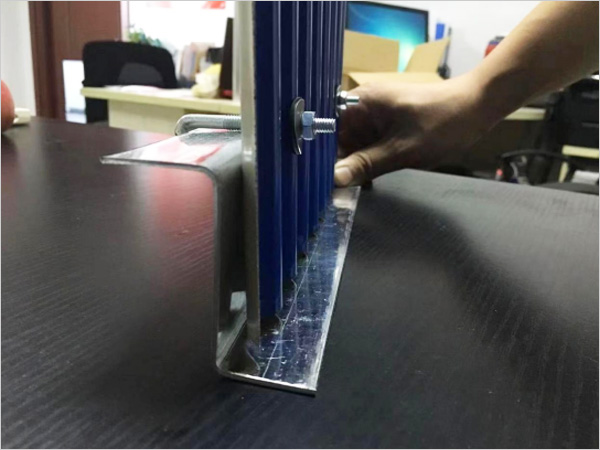

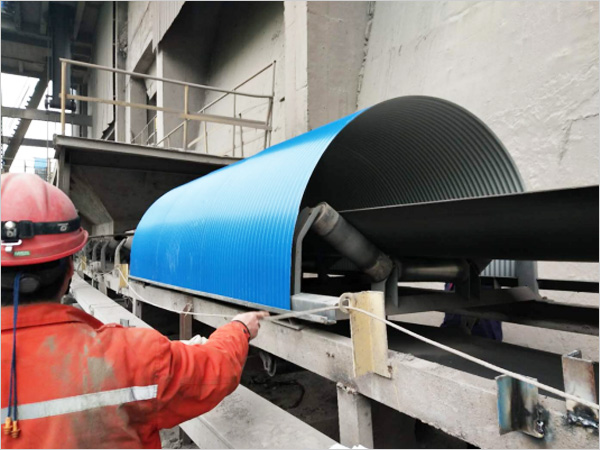

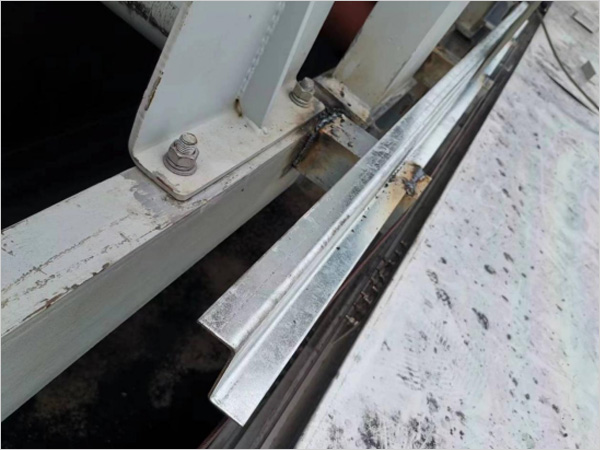

Installation Instructions: Weld Galvanized Angle Iron And Galvanized Z-shaped Purlins On Both Sides Of The Conveyor Belt Truss, And Then Fix Them With Hook Nails This Installation Method Is Sturdy And Durable. Note: The Z-shaped Purlin Is 3 Meters Long, The Hook Nail Specification Is M6, And The Angle Iron Is 30 * 30 * 2, 10 Centimeters Per Section As Shown In The Picture

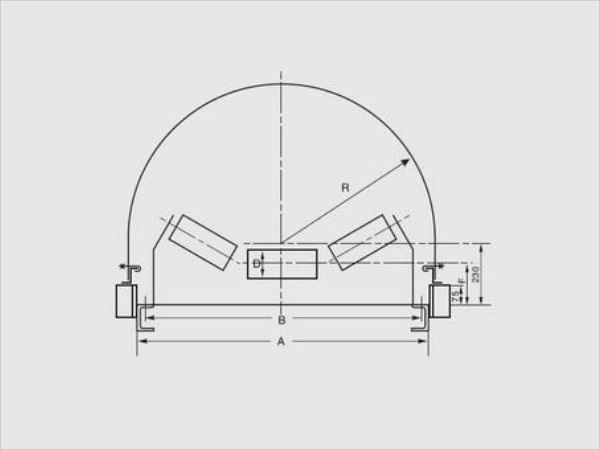

Specifications And Models (can Be Viewed In The Gallery)

Note: Customization Can Be Made According To Customer Requirements

Method For Measuring The Size Of The Conveyor Hood:

1. Width: Use A Tape Measure To Measure Horizontally At The Widest Point Of The Belt To Obtain The Width Of The Belt. This Is The Key Basis For Designing The Internal Width Of The Dust Cover, Ensuring That The Dust Cover Can Completely Cover The Belt. Generally, The Internal Width Of The Dust Cover Should Be 5-10 Centimeters Wider Than The Belt To Prevent Dust From Rising Out When Materials Overflow.

-Length: Measure The Length Of The Belt Between The Head And Tail Ends Of The Conveyor Along The Direction Of Belt Movement, Providing Reference For The Length Of The Dust Cover. However, Considering That The Conveyor May Have Special Parts Such As Bends And Transitions, The Actual Length Of The Dust Cover Needs To Be Reasonably Extended On This Basis, Generally By 10% -20%, To Ensure Full Stroke Protection.

2. Conveyor Frame:

-Height: Measure Vertically From The Bottom Support Surface Of The Conveyor To The Highest Point At The Top Of The Frame To Understand The Overall Height Of The Frame, In Order To Determine The Height Of The Dust Cover And Ensure Sufficient Space Inside To Accommodate The Operation Of The Belt And Rollers. Usually, The Height Inside The Dust Cover Should Be 15-30 Centimeters Higher Than The Highest Point Of The Frame.

-Width: Measure The Distance Between The Outermost Ends Of The Conveyor Frame On Both Sides, Which Helps Determine The Lateral Dimensions Of The Dust Cover And Ensures That It Can Wrap Around The Frame. Generally, The Outer Width Of The Dust Cover Is 10-20 Centimeters Wider Than The Frame.

3. Roller And Idler:

-Drum Diameter: Measure The Diameter Of Each Drum, And Reserve Appropriate Space For The Dust Cover At The Drum To Avoid Interference. Generally, The Distance Between The Dust Cover And The Edge Of The Drum Should Be Kept At 10-15 Centimeters.

-Roller Spacing And Height: Measure The Distance Between Adjacent Rollers, As Well As The Height From The Top Of The Rollers To The Bottom Of The Frame, Which Helps Determine The Shape And Height Of The Bottom Of The Dust Cover, Ensuring That The Bottom Of The Dust Cover Is Compatible With The Rollers And Does Not Affect Their Rotation.

4. Special Parts:

-Turning Point: If The Conveyor Has A Turning Point, It Is Necessary To Measure The Turning Radius, Angle, And The Length Difference Between The Inside And Outside Of The Belt At The Turning Point. The Dust Cover At The Turning Point Should Be Specially Designed To Ensure A Tight Fit And Not Affect The Turning Of The Belt, Such As Using Bendable Materials Or Segmented Splicing Design

Structural Form: Full Coverage, Full Coverage With Windows, Maintenance, Pedestrian Style, Customizable

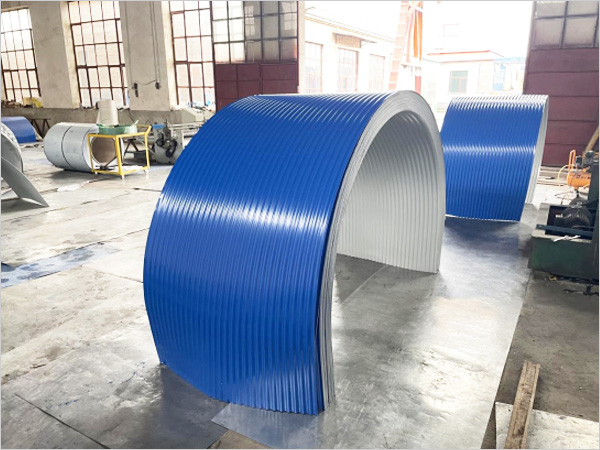

Full Coverage

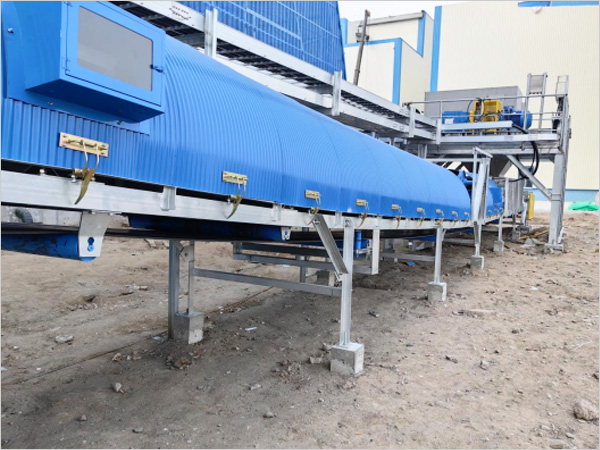

Full Coverage With Windows

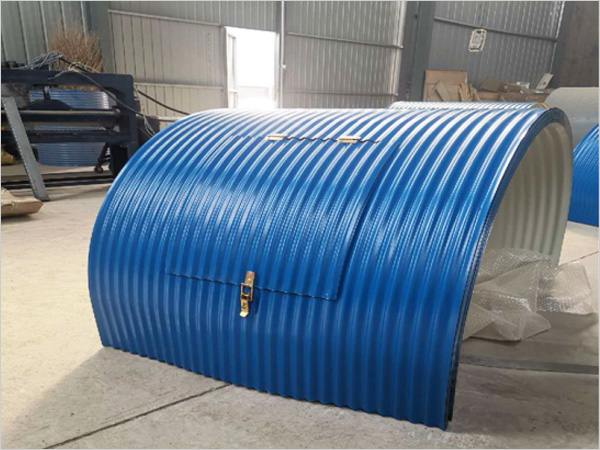

Maintenance Type

Overpass Style

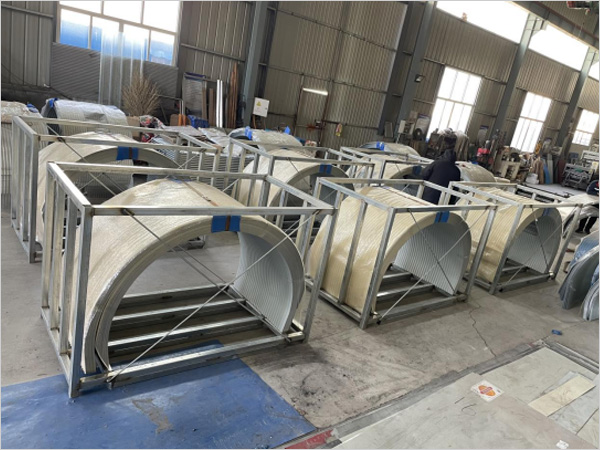

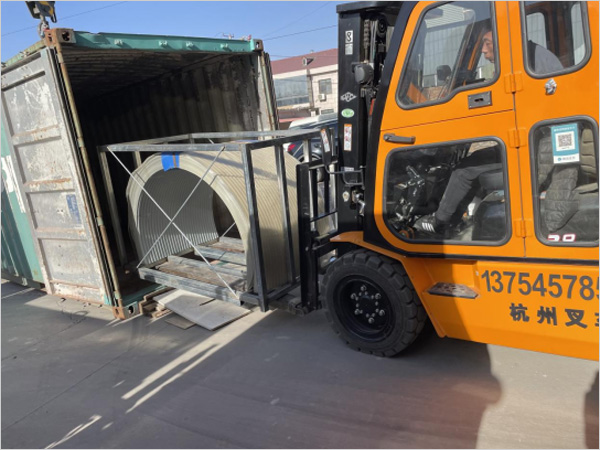

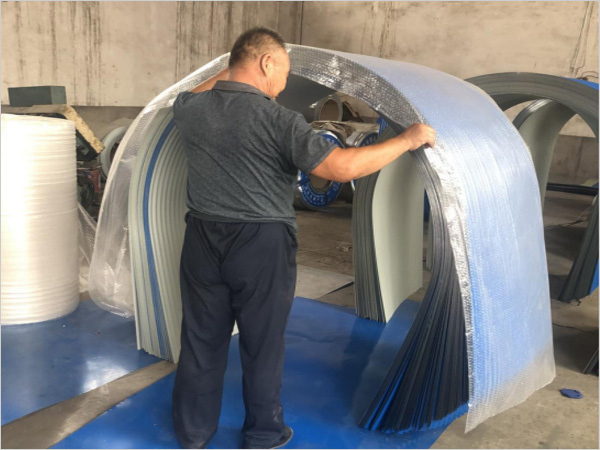

Conveyor Hood Transportation And Packaging: We Transport By Land And Sea. We Collaborate With Transportation Suppliers Who Are 100% Committed To Our Customer Service Philosophy, Strictly Adhering To Delivery Deadlines And Real-time Order Status Information. We Usually Use Frame Box Packaging And Manufacture According To Each Customer's Requirements

The Reason For Choosing Us Is To Directly Connect With The Factory, Saving Costs. Special Specifications And Models Can Be Customized For Processing. The Factory Has Professional Designers To Provide Installation Solutions For You.

Chinese Manufacturer, Welcome To The Factory.

Factory Direct Sales Savings: By Purchasing Directly From Our Factory, You Can Save A Significant Amount Of Costs. Our Streamlined Supply Chain Eliminates Intermediaries, Allowing Us To Offer Competitive Prices Without Compromising Quality.

Batch Order Discount: For Large Projects Or Industrial Applications, We Offer Significant Discounts For Bulk Orders. Please Contact Us To Discuss Your Specific Requirements And Obtain A Customized Quotation That Is Suitable For Your Budget And Project Scale
